PCC01 Prontotec Corner Cutter

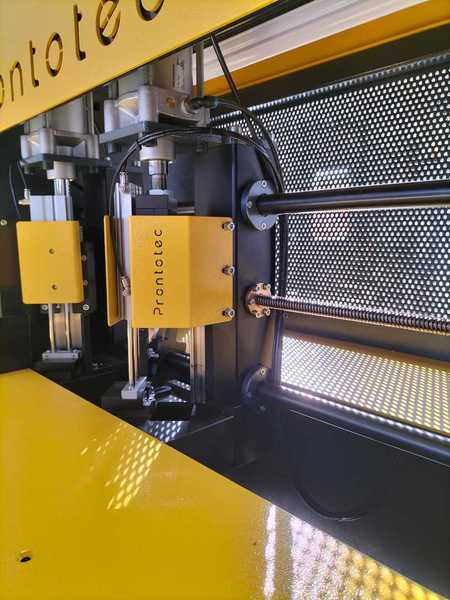

The PCC01 is a simple and efficient corner cutter: it is equipped with two cutting devices, so that it is possible to cut two corners of cover materials at the same time. The adjustment of the machine for the various sizes is done manually and very quickly by means of a hand-wheel and one locking lever. The cut depth (the size of the triangular trim) can be adjusted by moving the side guides. Machine can be useful for cut different Shape as round corner book block.



Special shape knife under request : round shape, 45° shape, Integral shape

Power Supply: 220V 50/60Hz

Watt: 100W

Barometric Pressure: 6 bar

Max book thickness: 60mm

Min book size (spine): 125x125mm

Max book size (spine): 700x500mm

Dimensions (WxDxH): 1000x800x1440mm

Weight: 150 kgs







PCC01 CATALOGUE
PCC01 UK.pdf
Documento Adobe Acrobat [2.5 MB]

PCC02 Automatic in Line Round Corner Cutter

PCC02 represent an innovative solution for cut the corners of the
book block as single or as pile in line with three knife trimmer of
every brand. Machine can work as well off line with a pre belt
feeding as independent unit. As high speed in line solution this
unit warranty a great capacity for medium and long runs with a
capability to a pile measure of 60 mm.



Round Shape under request : R4, R6, R9, R12, R15

Power Supply: 380V 50/60Hz

Barometric Pressure: 6 bar

Speed : 2.500 Books hour as single copy

Max book thickness: 60 mm

Min book size (spine): 80 x125mm

Max book size (spine): 300 x 420 mm

Dimensions (WxDxH): 2.000 x 1.200 x 1.430 mm

Weight: 600 kgs
