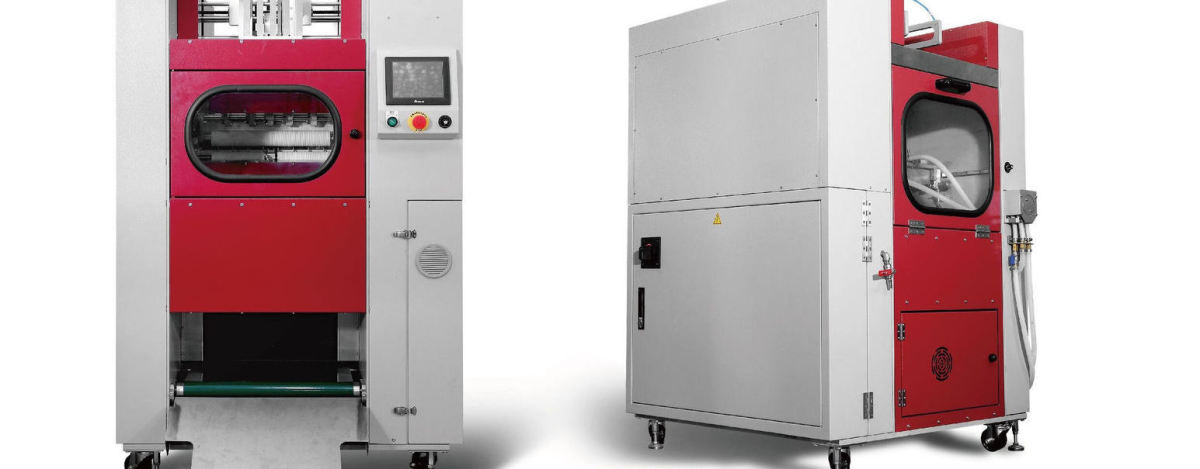

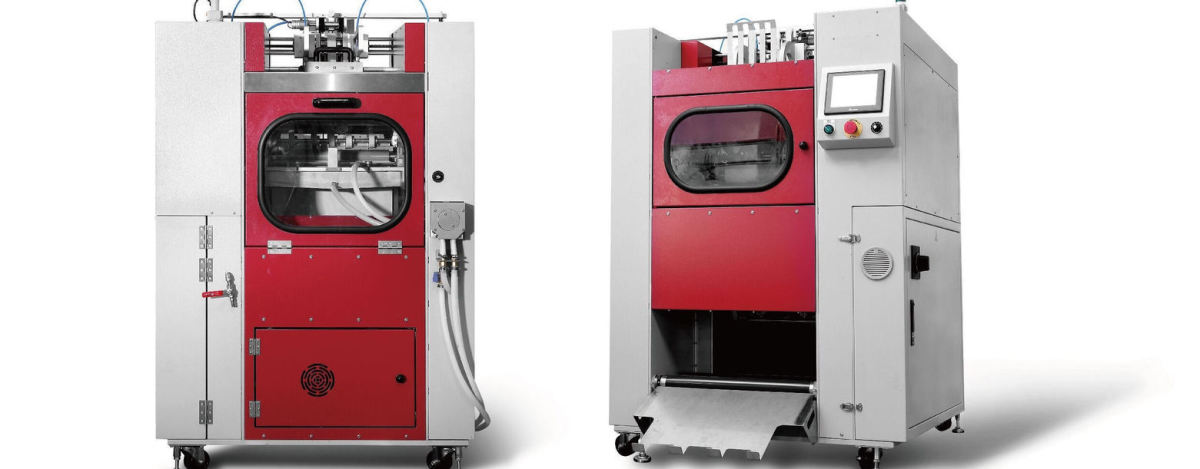

LayFlat PLF01

PLF01

Book gluing require very few glue consumption; machine is high working speed, stable & high quality output with much lower labor cost. Double feeder, one is of cover sheet feeding, another is for cardboard feeding. Cardboard will be over 1 mm than folding sheet, after that board book can be opened into 180 degrees.



Technical details :

Automatic adjustment size

Automatic feeding

Automatic gluing application Automatic binding Gluing sheet to book

PURPOSE

The machine is an advanced equipment designed for photo books, layflat books, children board book, which can reduce production cost effectively. Machine Speed : 70 sheets per minute Max. 380 mm x 360 mm Min. 155mm x 155mm Machine Dimention 1100 mm x 1000 mm x 1800 mm Machine Weight: 700 Kgs Paper thikness : 0.5mm - 1.5mm 157gsm - 300gsm Power : 2 Kw Air Cons. 500L/min /6 bar Contact us for more details
